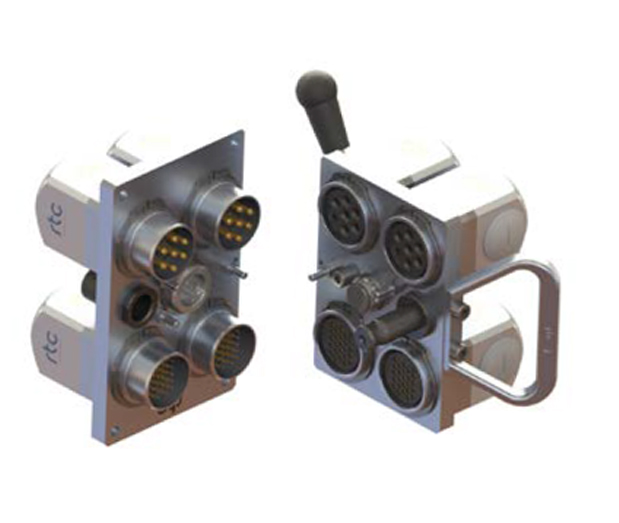

Multicouplings
Collectors
Hoses
Mini Con
Water Flow
Regulators
Accessories
Mobile Mold
Cleaner

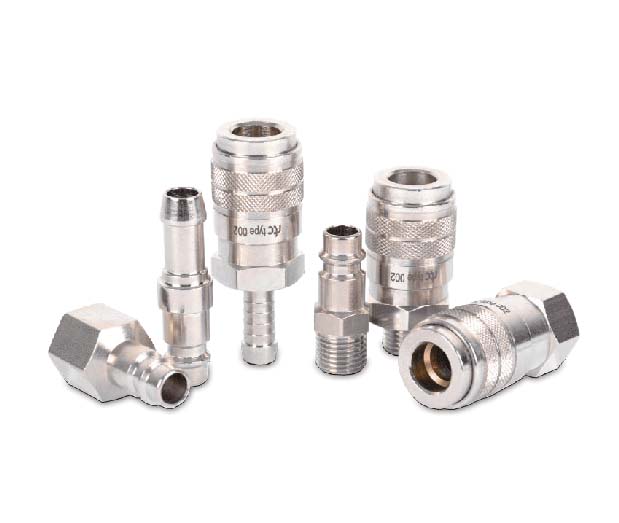

Single Shut-Off

002

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.4

PDF

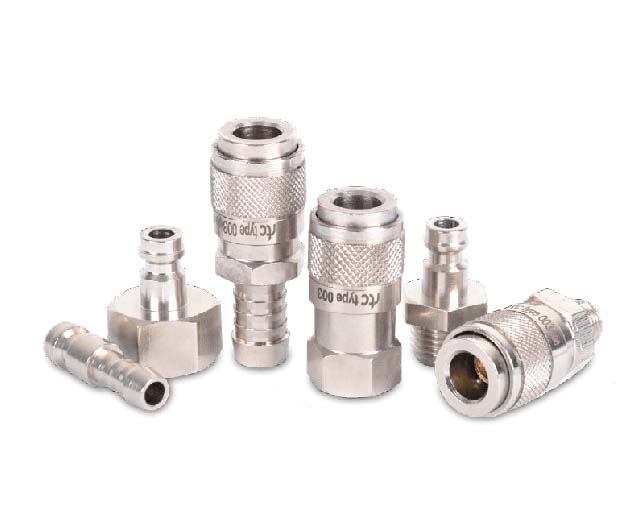

Double Shut-Off

003

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5

PDF

Japanese Profile

013

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
7.5 / 10

PDF

Single Handed Operation

014

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
5.5 / 9

PDF

English Industrial Profile

017

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
5 / 9.5

PDF

English Industrial Profile

019

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Mini-Coupling, high flow rate

020

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
2.7

PDF

Coded & Optional Safety Function

021

Working Pressure
35 Bar (510 PSI)

Flow size
5 mm

PDF

Valve with high flow rate

022

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Plug ISO 6150-B-12

023

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Single-handed operation

025

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
7.8

PDF

Industrial standard

026

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.2

PDF

Single-handed operation

027

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
10.5

PDF

Plug ISO 6150-B-15

030

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
8

PDF

Single-handed operation

032

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
6 / 10

PDF

Single-handed operation

033

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
 8

PDF

Single-handed operation

034

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
10

PDF

With safety function

035

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
11

PDF

With safety function

036

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.4

PDF

Single-handed operation

037

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
11

PDF

Brass-Industrial Profile

038

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
15 / 19

PDF

Free Flow Valve

045

Max. Working Pressure
465 Bar (6700 PSI)

Flow size (mm)
04 / 07 / 10 13 / 19 / 25 / 32 / 38

PDF

Free Flow Valve

046

Working Pressure
760 Bar (11000PSI)

Flow size (mm)
06 / 09 / 13 / 19 / 25 / 30 / 38 / 50

PDF

Spanish Profile

055

Max.Working Pressure
25 bar (362 PSI)

Flow size (mm)
5.2 / 7 / 10.5

PDF

High Flow / Medium Pressure

069

Max. Working Pressure
75 Bar (1090 PSI)

Flow size (mm)
04 / 08 / 10 / 13 / 16 / 19 / 25 / 32 /38

PDF

ISO 7241-1 Type B-Norm

070

Max. Working Pressure
300 Bar  (4350 PSI)

Flow size (mm)
04 / 08 / 10 / 13 / 16 / 19 / 32 / 38 / 50

PDF

High Flow / Heavy Duty

071

Max.Working Pressure
690 Bar (10000 PSI)

Flow size (mm)
06 / 09 / 13 / 19 / 25 / 30

PDF

Japanese Profile Hydraulic Coupling

072

Max.Working Pressure
400 bar (5800 PSI)

Flow size (mm)
05 / 06 / 10 / 12 / 16 / 19

PDF

Japanese Profile Hydraulic Coupling

074

Max.Working Pressure
350 bar (5100 PSI)

Flow size (mm)
06 / 10 / 13 / 16 / 19 / 25 / 32 / 37

PDF

Ultimate High Pressure (1000 Bar)

080

Max. Working Pressure
2000 Bar (29000 PSI)

Flow size (mm)
03 / 04

PDF

Ultimate High Pressure (1500 Bar)

081

Working Pressure
1500 Bar (21755PSI)

Flow size (mm)
03

PDF

Ultimate High Pressure (1000 Bar)

082

Working Pressure
1000 Bar (14503PSI)

Flow size (mm)
04

PDF

Ultimate High Pressure (2000 Bar)

083

Working Pressure
2000 Bar (29000 PSI)

Flow size (mm)
03

PDF

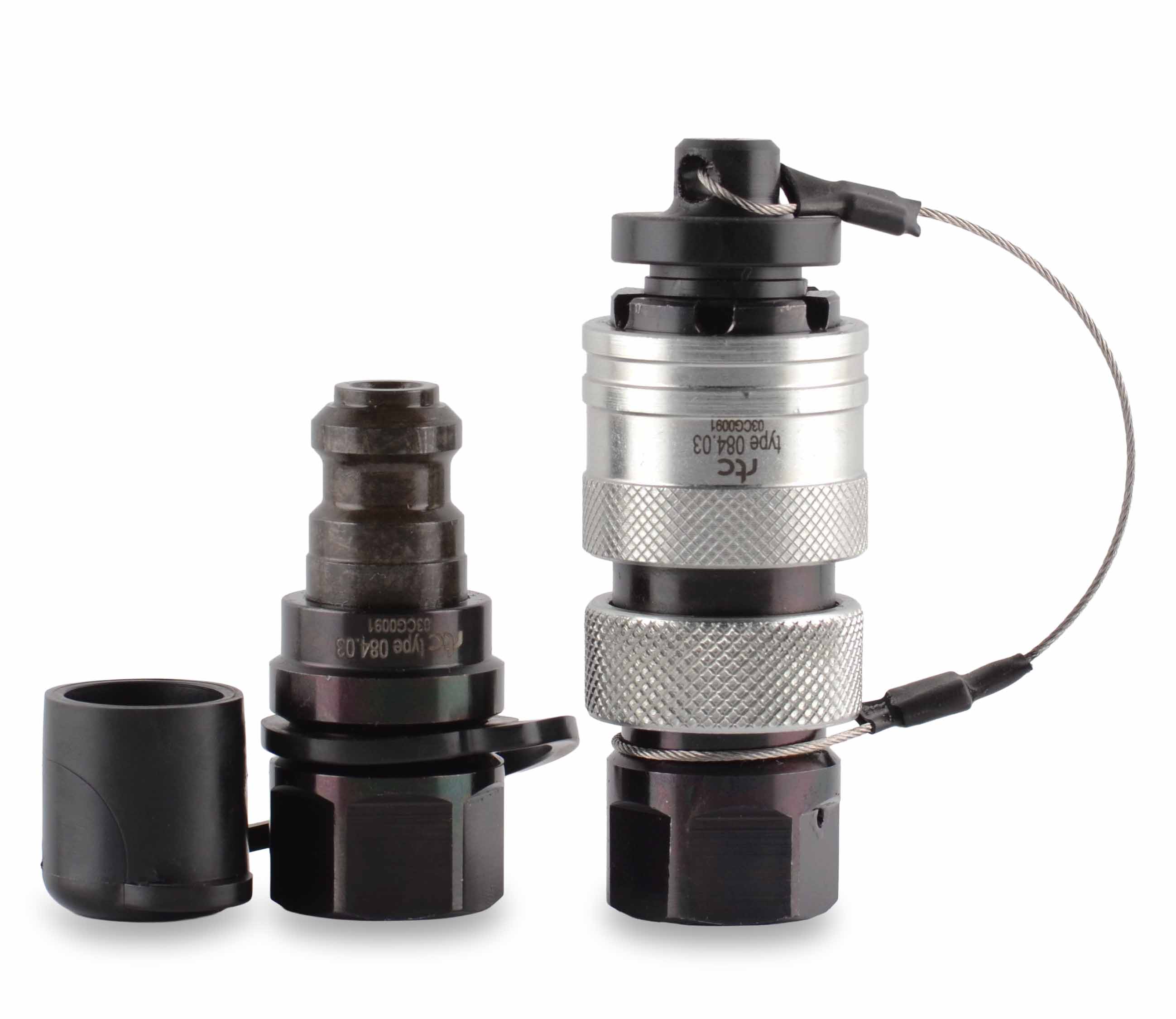

Ultimate High Pressure (3000 Bar)

084

Working Pressure
3000 Bar (​​43500 PSI)

Flow size (mm)
03

PDF

ISO 1517-1

088

Max.Working Pressure
420 bar (6100 PSI)

Flow size (mm)
04

PDF

Heavy Duty

089

Max.Working Pressure
350 bar (5100 PSI)

Flow size (mm)
06 / 10 /13 / 16 / 19 / 25 / 32 / 37

PDF

European profile

090

Max. Working Pressure
15 bar (217 PSI)

Flow size (mm)
06 / 09 / 13

PDF

Ejector / Knock-out Coupler

092

Body Size (mm)
Mechanical: 16 / 18 / 25
Pneumatic: 19 / 36

Pulling Force

RTC 092.16 1.500 kg
RTC 092.18 2.400 kg
RTC 092.19 1.500 kg
RTC 092.25 3.200 kg
RTC 092.36 6.000 kg

PDF

Leaktight

093

Max. Working Pressure
20 bar (290 PSI)

Flow size (mm)
08

PDF

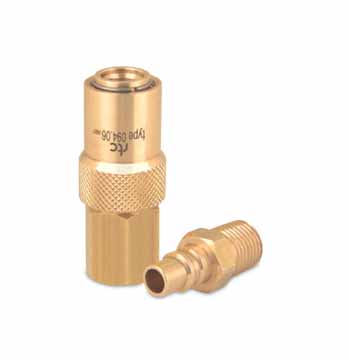

Japanese Profile Water Coupling

094

Working Pressure
10 Bar (145 PSI)

Flow size (mm)
6

PDF

Leaktight

097

Max. Working Pressure
100 bar (1450 PSI)

Flow size (mm)
08

PDF

On Steam Line

098

Working Pressure
20 bar (290 PSI)

Flow size  (mm)
6 / 8 / 12

PDF

International Profile

099

Max. Working Pressure
15 Bar (217 PSI)

Flow size (mm)
06 / 09 / 15

PDF

French profile

100

Max. Working Pressure
10 bar (145 PSI)

Flow size (mm)
06 / 08 / 13

PDF

Single / Double Shut off

101

Max.Working Pressure
16 bar (232 PSI)

Flow size (mm)
06 / 09 / 10 / 12 / 16 / 20 / 25 / 38

PDF

Free Flow Valve

102

Max.Working Pressure
50 bar (725 PSI)

Flow size (mm)
03 / 06 / 07 / 08 / 09 / 12 / 16 / 25

PDF

Residual Pressure Connection / Disconnection

103

Max Working Pressure
500 Bar (7250 PSI)

Flow size (mm)
07 / 08 / 10 /11 / 12 / 15 / 19 / 25 / 33

PDF

Non-Spill Technology

104

Max Working Pressure
500 Bar (7250 PSI)

Flow size (mm)
04 / 06 / 08 10 / 12 / 15 / 20 / 25 /32 / 37 / 50 / 75

PDF

105

Leaktight

Max. Working Pressure
16 bar (232 PSI)

Flow size (mm)
09 / 12 / 16 / 20 / 25

PDF

106

Ohne Ventil

Working Pressure
10 bar (145 PSI)

Flow size (mm)
25 / 42 / 50 63 / 110

PDF

108

Eine Hand Kuppeln “PUSH-PULL” Lösen

Max.Working Pressure
180 Bar (2610 PSI)

Flow size (mm)
03 / 06 / 07 / 09 / 12 / 16

PDF

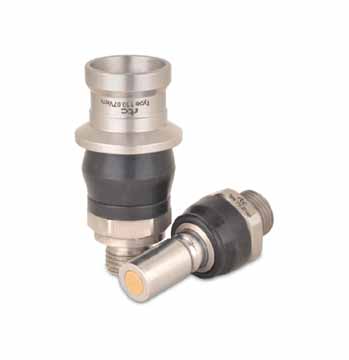

110

Flat Face Hydraulic Coupling (Non-Spill)

Max. Working Pressure
180 Bar (2610 PSI)

Flow Size (mm)
5 / 7 / 10 / 13

PDF

115

Non-Spill Technology / For Hot Runner Systems

Max.Working Pressure
450 Bar (6525 PSI)

Flow size (mm)
03 / 05 / 09 / 12 / 20

PDF

123

For Chemical Industry

Max.Working Pressure
500 bar (7.250 PSI)

Flow size (mm)
03 / 05 / 08

PDF

124

Non-Spill Technology

Max.Working Pressure
450 Bar (6525 PSI)

Flow size (mm)
06 / 08 / 09 / 12 / 16

PDF

126

Safe Locking Mechanism for Vibrating Applications

Max.Working Pressure
500 bar (7250 PSI)

Flow size (mm)
08 / 12 / 20 / 25 / 33

PDF

127

High Flow

Max.Working Pressure
10 bar (145 PSI)

Flow size (mm)
37

PDF

131

Flat Faced / Non- Spill

Max.Working Pressure
40 Bar (580 PSI)

Flow size (mm)
05 / 08 / 10 12 / 17 / 20 / 25

PDF

152

Flat-Face

Max.Working Pressure
60 bar (870 PSI)

Flow size (mm)
03/06 / 08 / 10 /12/16 /20 /25/32

PDF

170

Push-Button Coupling (For All Fluids)

Max.Working Pressure
400 Bar  (5800 PSI)

Flow size (mm)
03 / 06 / 08 / 11 / 19

PDF

171

ISO 4414, EN 983

Max.Working Pressure
16 bar (232 PSI)

Flow size (mm)
5.5 / 8 / 11

PDF

172

ISO 4414, EN 983

Max.Working Pressure
16 bar (232 PSI)

Flow size (mm)
5.5 / 8

PDF

173

Automatic Docking System

Max.Working Pressure
450 Bar (6525 PSI)

Flow size (mm)
03 / 05.5 / 08 / 11 / 19

PDF

200

Extremely versatile

Max.Working Pressure
100 Bar (1450 PSI)

Flow size (mm)
04 / 06 / 07 / 09 / 12 / 19 / 32 / 50

PDF

201

Medium Pressure

Max.Working Pressure
 250 Bar (3625 PSI)

Flow size (mm)
06 / 07 / 12 / 19 / 25 / 32 / 50

PDF

202

High Pressure

Max.Working Pressure
2000 Bar (29000 PSI)

Flow size (mm)
04 / 06 / 10 / 16 / 20 / 32

PDF

203

High Temperature

Max.Working Pressure
100 Bar  (1450 PSI)

Flow size (mm)
09/ 12 / 19/ 32 / 50

PDF

204

2 Different Coding Option

Max.Working Pressure
40 Bar (580 PSI)

Flow size (mm)
06 / 07 / 12 / 19 / 32

PDF

205

Flat Face / High Flow Rate

Max.Working Pressure
64 Bar (930 PSI)

Flow size (mm)
03 / 05 / 07 / 09 / 12 / 19

PDF

Ultimate High Temperature

219

Max.Working Pressure
20 bar (290 PSI)

Flow size (mm)
12 / 19

PDF

Safety Type with Metal Sleeve

450

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
03 / 06 / 08 / 11

PDF

Safety Type with Plastic Sleeve

451

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
06 / 08

PDF

ISO 6150-C / Coded With Safety

452

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
06

PDF

Heavy Duty

453

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
11 / 19

PDF

Brass Collector

454

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
11

PDF

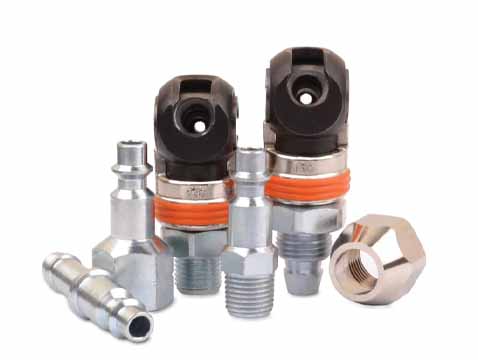

Through Flow, Minimum Pressure Loss

460.06 / SC-B1

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

Through Flow, Minimum Pressure Loss

460.08 / SC-E

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
08

PDF

Through Flow, Minimum Pressure Loss

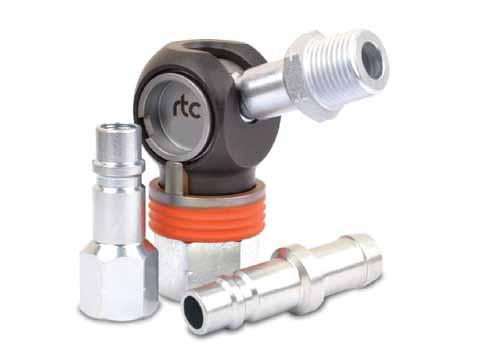

460.11 / SC-H&HB

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
11

PDF

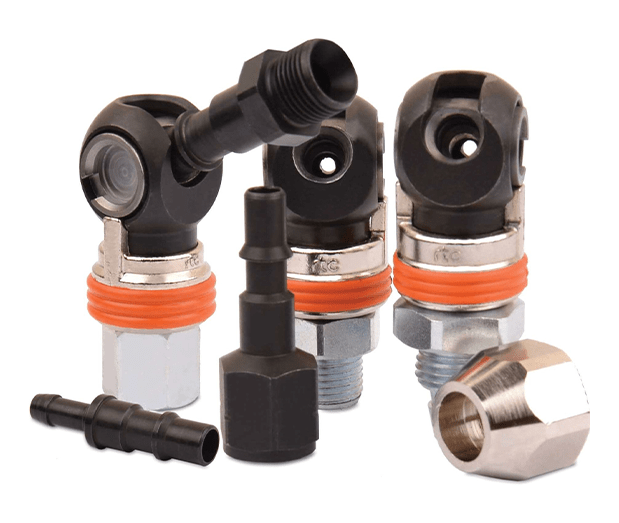

Through Flow, Minimum Pressure Loss

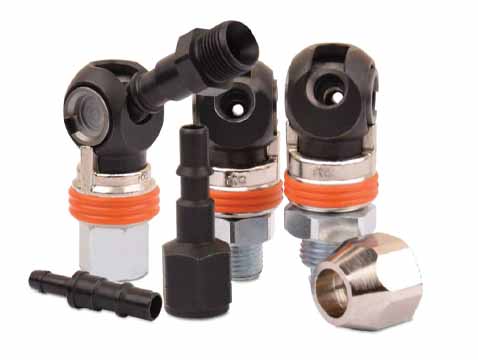

461.06 / SC-K

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

Through Flow, Minimum Pressure Loss

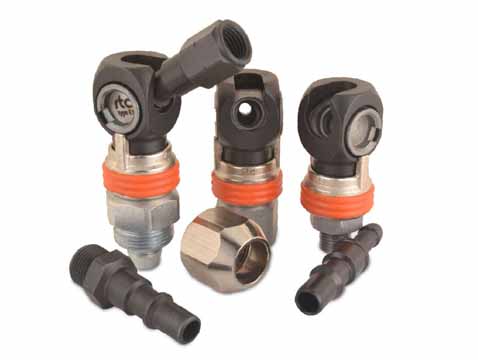

461.08 / SC-E1

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
08

PDF

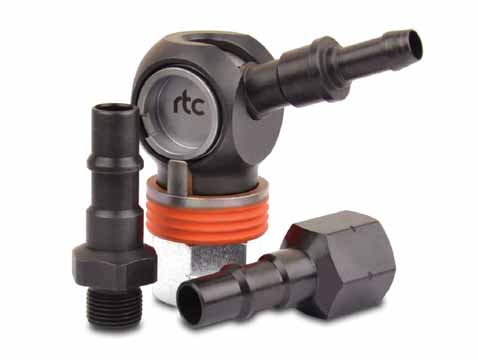

Through Flow, Minimum Pressure Loss

461.11 / SC-G

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
11

PDF

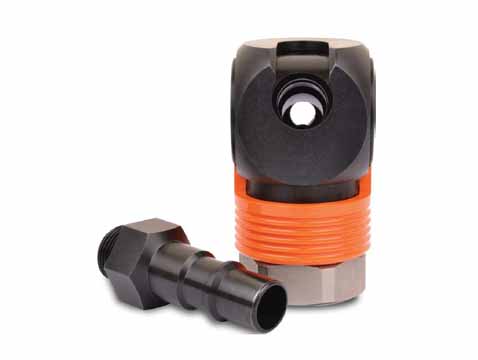

461.19 / SC-I

Through Flow, Minimum Pressure Loss

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
19

PDF

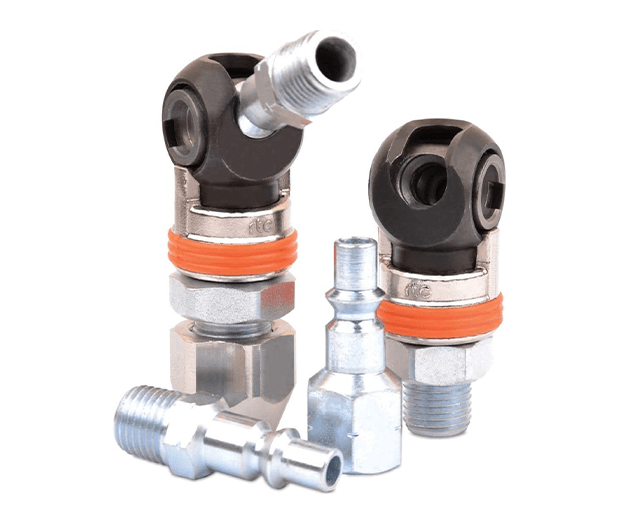

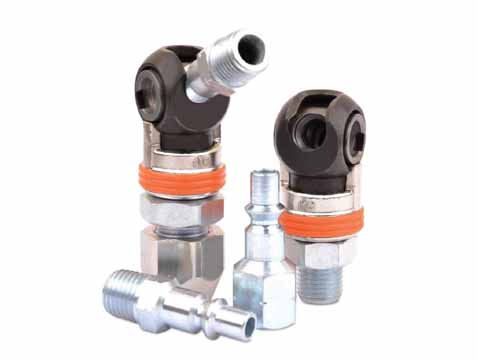

Single Shut-Off, Minimum Pressure Loss

462.06 / SC-A1

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

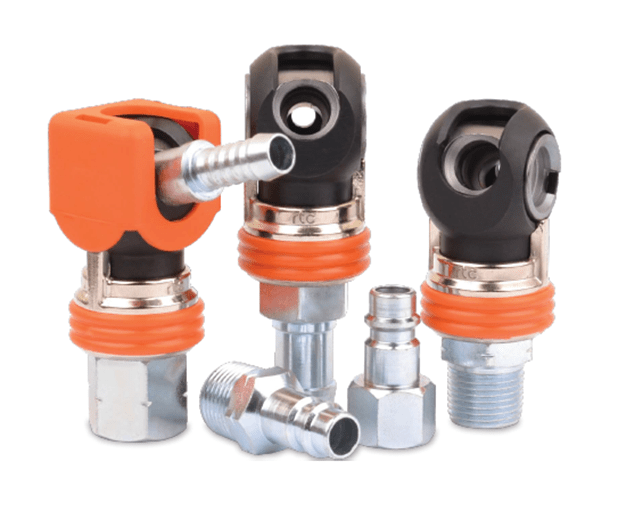

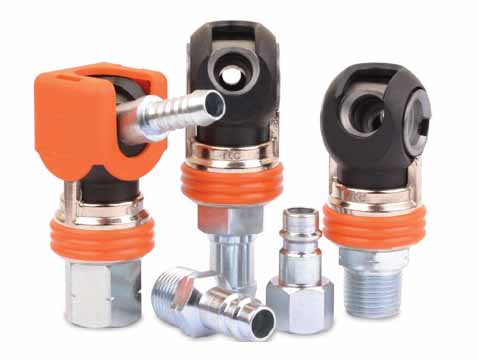

Double Shut-Off, Minimum Pressure Loss

463.08 / SC-C

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
08

PDF

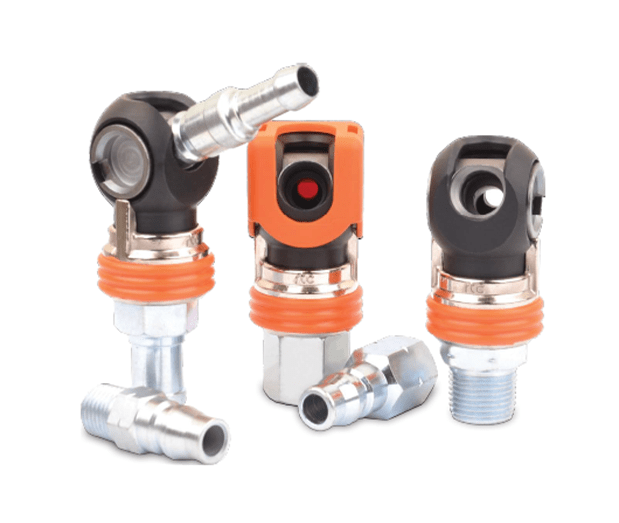

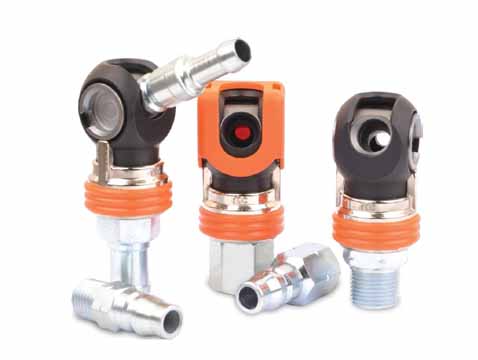

Flat Face, Minimum Spillage

464.08 / SC-D&DL

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
08

PDF

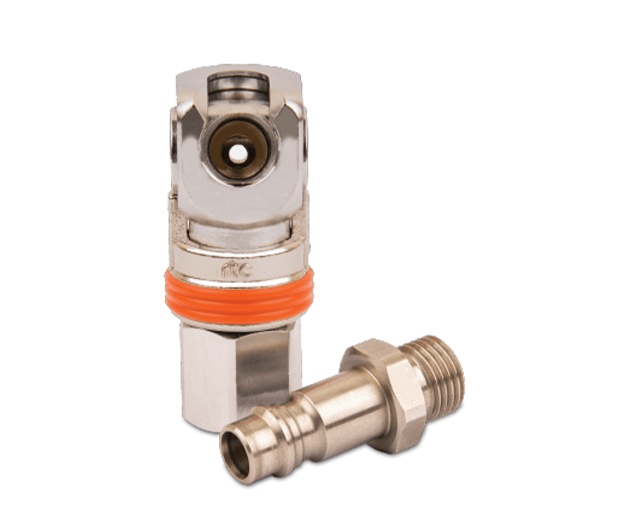

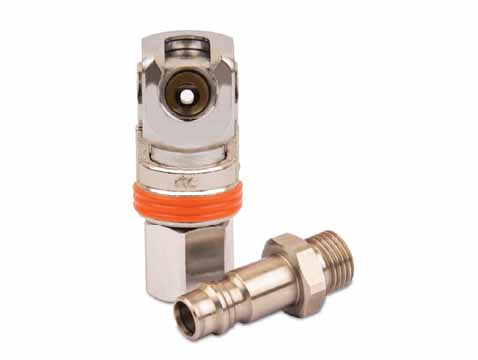

Flat Face, Minimum Spillage

465.08 / SC-M

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
08

PDF

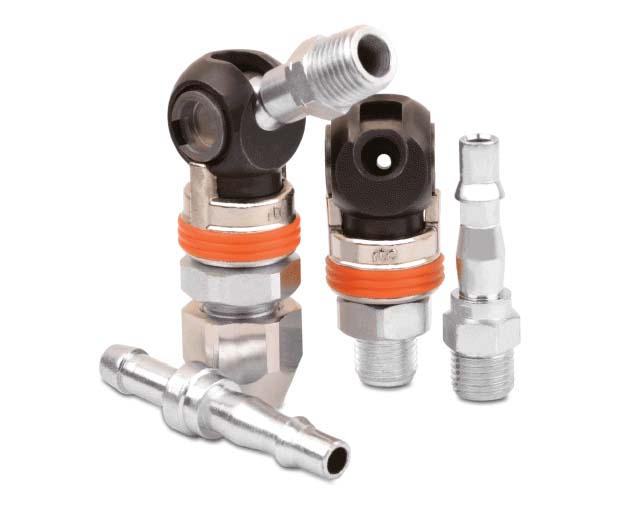

High Flow Performance

466.06 / SC-P

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

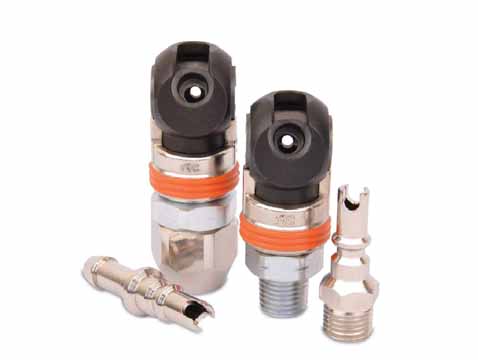

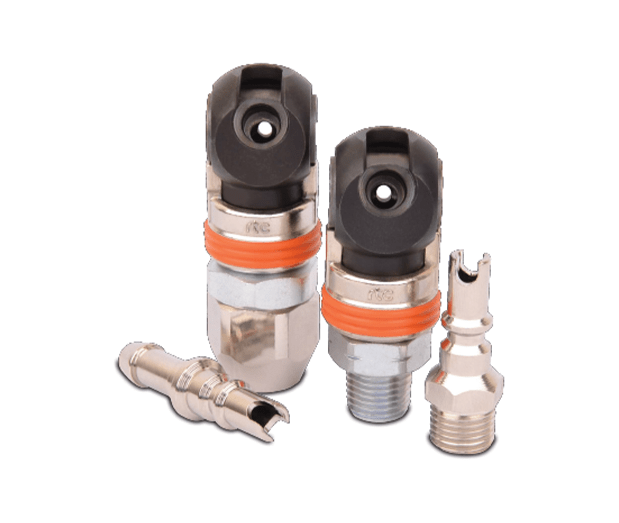

Safety Coupling, Two Stage

467.06 / SC-N

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

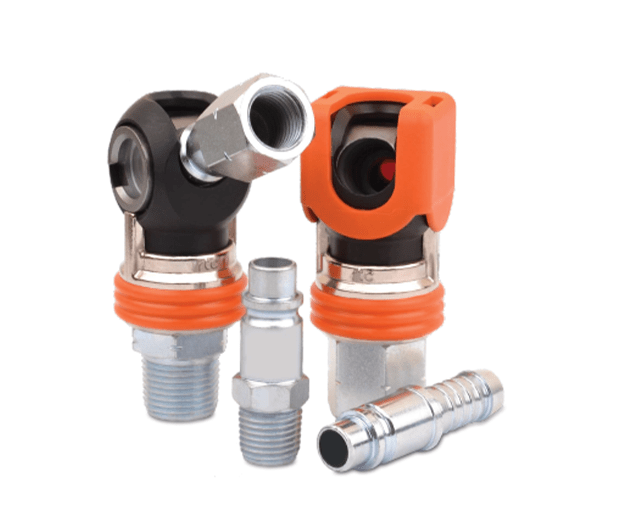

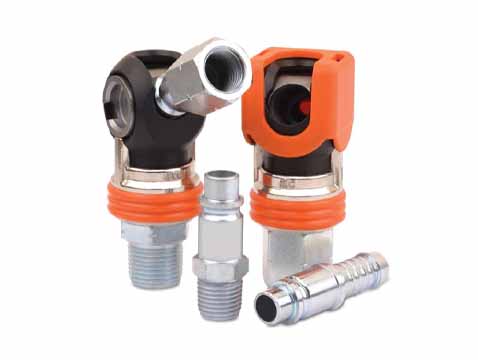

Safety Coupling, Two Stage

468.08 / SC-Q1

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
06

PDF

High Pressure

460-468 ACCESSORIES




Flow Size (mm)
/ 06 / 08 / 11 /19

PDF

LOCK 90

Push to Connect Hose 90°C

Inner diameter (mm)
9,5 / 12,7 / 16 / 19 / 25,4

Outer diameter (mm)
15,5 / 19,5 / 22,6 / 25,8 / 33,2

Max Pressure
28 bar

Temperature range
-40°C - +90°C

PDF

LOCK 90S

Push to Connect Hose 90°C

Inner diameter (mm)
9,5 / 12,7 / 16 / 19 / 25,4

Outer diameter (mm)
15,5 / 19,5 / 22,6 / 25,8 / 33,2

Max Pressure
28 bar

Temperature range
-40°C - +90°C

PDF

LOCK 140S

Push to Connect Hose 140°C

Inner diameter (mm)
9,5 / 12,7 / 16 / 19 / 25,4

Outer diameter (mm)
15,5 / 19,5 / 22,6 / 25,8 / 33,2

Max Pressure
28 bar

Temperature range
-40°C - +140°C

PDF

117

Brass Collector

Inlet Thread Range
3/4" - 1 1/4"

Outlet Thread Range
1/4" - 1/2"

PDF

118

Aluminium  Collector

Inlet Thread Range
3/4" - 2"

Outlet Thread Range
1/4" - 3/4"

PDF

119

Stainless Steel Collector

Inlet Thread Range
1" - 1 1/2"

Outlet Thread Range
1/4" - 1/2"

PDF

WFR-ZS

Water Flow Regulator

No of Entrances
1 - 12

Max. working temperature
90°C

Connector type
Female / Hose Plug

PDF

WFR-ZR

Water Flow Regulator

No of Entrances
1 - 12

Max. working temperature
90°C

Connector type
Female / Hose Plug

PDF

Huracan

Water Flow Regulator

Max. circuits
72

Max. working temperature
120°C

Plug and Play

PDF

M090

European Profile / Water Multicoupling

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09

Connections
6/8/10/12/16/ 20/ 24

PDF

M099

International Profile / Water Multicoupling

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09

Connections
6/8/10/12/16/ 20/ 24

PDF

M101

Reduces Setup Time

Max.Working Pressure
16 bar (230 PSI)

Flow size (mm)
06 / 09 / 10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 16 / 18 / 20 /24

PDF

M103

Residual Pressure Connection / Disconnection

Max.Working Pressure
200 bar (2900PSI)

Flow size (mm)
10

Connections
2 / 4 /6 / 8

PDF

M104

Hydraulic Multicouplingn With optional coding

Max.Working Pressure
200 bar

Flew size (mm)
08 / 10

Connections
2 - 4 - 6 - 8

PDF

M115

Flat Face - Dripless

Max.Working Pressure
16 bar (230 PSI)

Flow size
10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 1 6 / 18 / 20 / 24

PDF

M150

Flat Faced / Non- Spill

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09/ 12

Connections
6 / 12 / 18

PDF

M152

Flat Face - Dripless

Max.Working Pressure
16 bar (230 PSI)

Flow size
10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 1 6 / 18 / 20 / 24

PDF

M153

Flat Face / Non-Spill

Max.Working Pressure
16 bar (230 PSI)

Flow size
09

Connections
6 / 12 / 18 / 20

PDF

M303 MINI CON

Customised Mini-Connector

Max. Working Pressure
15 bar (220PSI)

Flow size (mm)
 4 / 6 / 8

Conenctions
2 / 3 / 4 / 6 / 8 / 12 / 16

PDF

EC

Electrical Connectors

Current
2 – 200 A

Voltage
25 – 830 V

PDF

Mobile Mold Cleaner

Electricity Not Required / Powered by Air

Max.Working Pressure
16 bar (230 PSI)

Flow size (mm)
06 / 09 / 10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 16 / 18 / 20 /24

PDF

BC

Threadless Pressure Plug

PDF

BCO

Threadless Pressure Plug (with O-Ring)

PDF

PPD

Pressure Plug with copper washer

PDF

MHN

Male hose connector

PDF

FHN

Female hose connector

PDF

SPN

Female thread swivel adapter

PDF

SPN

Female thread swivel adapter 45°

PDF

SPN

Female thread swivel adapter 90°

PDF

MRN

Male metric adapter

PDF

MMN

Male thread adapter

PDF

MFN

Female to male thread reduction adapter

PDF

ELB

90° adapter

PDF

HHN

Hose adapter

PDF

EBFM 45 / 90

Elbow 45° / 90°

PDF

CPW2

Hose clamps

PDF

CPE

Hose clamps

PDF

KVFM

Ball valve

PDF

SVFM

Ball valve

PDF

TVFM

Ball valve

PDF

KVFF

Ball valve

PDF

SVFF

Ball valve

PDF

TVFF

Ball valve

PDF

SBM & TBM

Straight & Turbo Baffles

PDF
