Monocouplings

Single Shut-Off

002

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.4

PDF

Double Shut-Off

003

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5

PDF

Japanese Profile

013

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
7.5 / 10

PDF

Single Handed Operation

014

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
5.5 / 9

PDF

English Industrial Profile

017

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
5 / 9.5

PDF

English Industrial Profile

019

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Mini-Coupling, high flow rate

020

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
2.7

PDF

Coded & Optional Safety Function

021

Working Pressure
35 Bar (510 PSI)

Flow size
5 mm

PDF

Valve with high flow rate

022

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Plug ISO 6150-B-12

023

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
5.5

PDF

Single-handed operation

025

Working Pressure
35 Bar (510 PSI)

Flow Size (mm)
7.8

PDF

Industrial standard

026

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.2

PDF

Single-handed operation

027

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
10.5

PDF

Plug ISO 6150-B-15

030

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
8

PDF

Single-handed operation

032

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
6 / 10

PDF

Single-handed operation

033

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
8

PDF

Single-handed operation

034

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
10

PDF

With safety function

035

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
11

PDF

With safety function

036

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
7.4

PDF

Single-handed operation

037

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
11

PDF

Brass-Industrial Profile

038

Working Pressure
35 Bar (510 PSI)

Flow size (mm)
15 / 19

PDF

Free Flow Valve

045

Max. Working Pressure
465 Bar (6700 PSI)

Flow size (mm)
04 / 07 / 10 13 / 19 / 25 / 32 / 38

PDF

Free Flow Valve

046

Working Pressure
760 Bar (11000PSI)

Flow size (mm)
06 / 09 / 13 / 19 / 25 / 30 / 38 / 50

PDF

Spanish Profile

055

Max.Working Pressure
25 bar (362 PSI)

Flow size (mm)
5.2 / 7 / 10.5

PDF

High Flow / Medium Pressure

069

Max. Working Pressure
75 Bar (1090 PSI)

Flow size (mm)
04 / 08 / 10 / 13 / 16 / 19 / 25 / 32 /38

PDF

ISO 7241-1 Type B-Norm

070

Max. Working Pressure
300 Bar (4350 PSI)

Flow size (mm)
04 / 08 / 10 / 13 / 16 / 19 / 32 / 38 / 50

PDF

High Flow / Heavy Duty

071

Max.Working Pressure
690 Bar (10000 PSI)

Flow size (mm)
06 / 09 / 13 / 19 / 25 / 30

PDF

Japanese Profile Hydraulic Coupling

072

Max.Working Pressure
400 bar (5800 PSI)

Flow size (mm)
05 / 06 / 10 / 12 / 16 / 19

PDF

Japanese Profile Hydraulic Coupling

074

Max.Working Pressure
350 bar (5100 PSI)

Flow size (mm)
06 / 10 / 13 / 16 / 19 / 25 / 32 / 37

PDF

Ultimate High Pressure (1000 Bar)

080

Max. Working Pressure
2000 Bar (29000 PSI)

Flow size (mm)
03 / 04

PDF

Ultimate High Pressure (1500 Bar)

081

Working Pressure
1500 Bar (21755PSI)

Flow size (mm)
03

PDF

Ultimate High Pressure (1000 Bar)

082

Working Pressure
1000 Bar (14503PSI)

Flow size (mm)
04

PDF

Ultimate High Pressure (2000 Bar)

083

Working Pressure
2000 Bar (29000 PSI)

Flow size (mm)
03

PDF

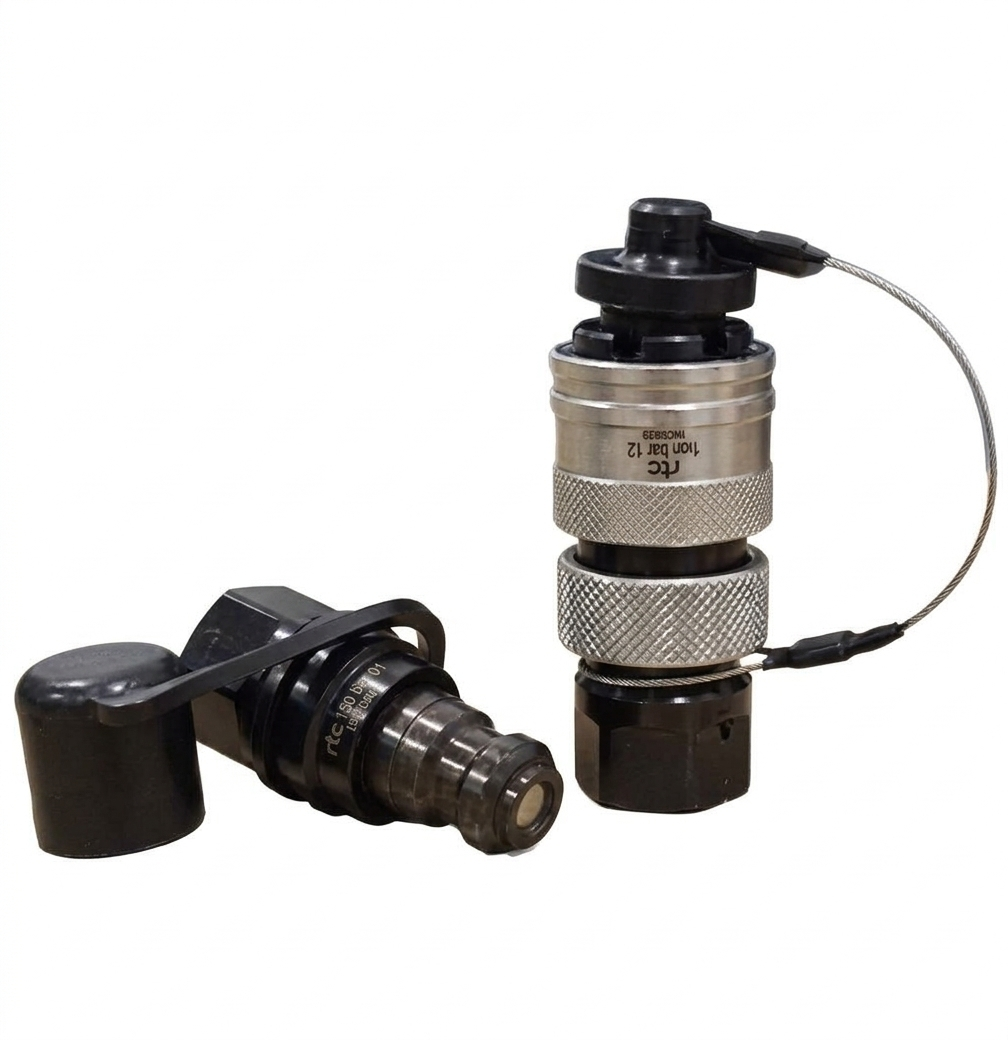

Ultimate High Pressure (3000 Bar)

084

Working Pressure
3000 Bar (43500 PSI)

Flow size (mm)
03

PDF

ISO 1517-1

088

Max.Working Pressure
420 bar (6100 PSI)

Flow size (mm)
04

PDF

Heavy Duty

089

Max.Working Pressure
350 bar (5100 PSI)

Flow size (mm)
06 / 10 /13 / 16 / 19 / 25 / 32 / 37

PDF

European profile

090

Max. Working Pressure
15 bar (217 PSI)

Flow size (mm)
06 / 09 / 13

PDF

Ejector / Knock-out Coupler

092

Body Size (mm)
Mechanical: 16 / 18 / 25
Pneumatic: 19 / 36

Pulling Force

RTC 092.16 1.500 kg
RTC 092.18 2.400 kg
RTC 092.19 1.500 kg
RTC 092.25 3.200 kg
RTC 092.36 6.000 kg

PDF

Leaktight

093

Max. Working Pressure
20 bar (290 PSI)

Flow size (mm)
08

PDF

Japanese Profile Water Coupling

094

Working Pressure
10 Bar (145 PSI)

Flow size (mm)
6

PDF

Leaktight

097

Max. Working Pressure
100 bar (1450 PSI)

Flow size (mm)
08

PDF

On Steam Line

098

Working Pressure
20 bar (290 PSI)

Flow size (mm)
6 / 8 / 12

PDF

International Profile

099

Max. Working Pressure
15 Bar (217 PSI)

Flow size (mm)
06 / 09 / 15

PDF

French profile

100

Max. Working Pressure
10 bar (145 PSI)

Flow size (mm)
06 / 08 / 13

PDF

Single / Double Shut off

101

Max.Working Pressure
16 bar (232 PSI)

Flow size (mm)
06 / 09 / 10 / 12 / 16 / 20 / 25 / 38

PDF

Free Flow Valve

102

Max.Working Pressure
50 bar (725 PSI)

Flow size (mm)
03 / 06 / 07 / 08 / 09 / 12 / 16 / 25

PDF

Residual Pressure Connection / Disconnection

103

Max Working Pressure
500 Bar (7250 PSI)

Flow size (mm)
07 / 08 / 10 /11 / 12 / 15 / 19 / 25 / 33

PDF

Non-Spill Technology

104

Max Working Pressure
500 Bar (7250 PSI)

Flow size (mm)
04 / 06 / 08 10 / 12 / 15 / 20 / 25 /32 / 37 / 50 / 75

PDF

Ultimate High Temperature

219

Max.Working Pressure
20 bar (290 PSI)

Flow size (mm)
12 / 19

PDF

Safety Type with Metal Sleeve

450

Working Pressure
25 Bar (360 PSI)

Flow Size (mm)
03 / 06 / 08 / 11

PDF

Safety Type with Plastic Sleeve

451

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
06 / 08

PDF

ISO 6150-C / Coded With Safety

452

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
06

PDF

Heavy Duty

453

Working Pressure
25 Bar (360 PSI)

Flow size (mm)
11 / 19

PDF
