MULTICOUPLINGS

Thermal
Management

Hydraulic

M090

European Profile / Water Multicoupling

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09

Connections
6/8/10/12/16/ 20/ 24

PDF

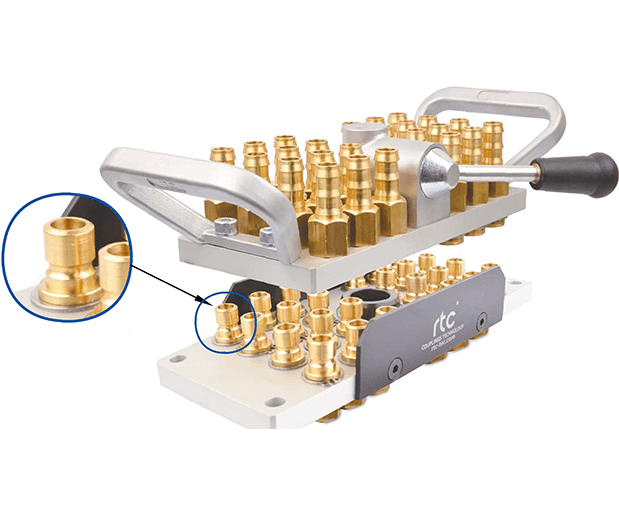

M099

International Profile / Water Multicoupling

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09

Connections
6/8/10/12/16/ 20/ 24

PDF

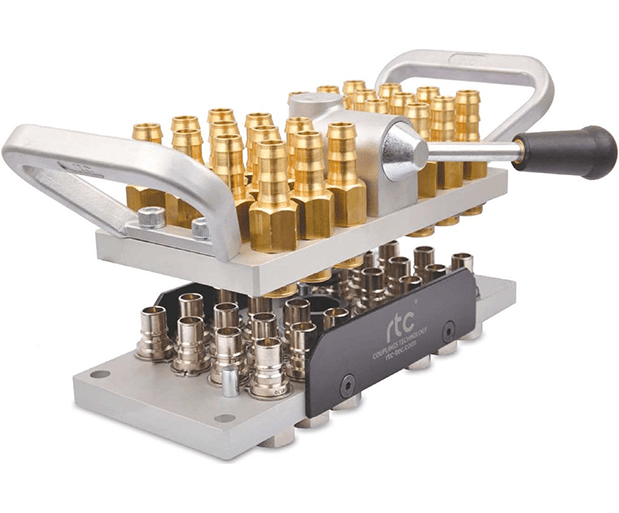

M101

Reduces Setup Time

Max.Working Pressure
16 bar (230 PSI)

Flow size (mm)
06 / 09 / 10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 16 / 18 / 20 /24

PDF

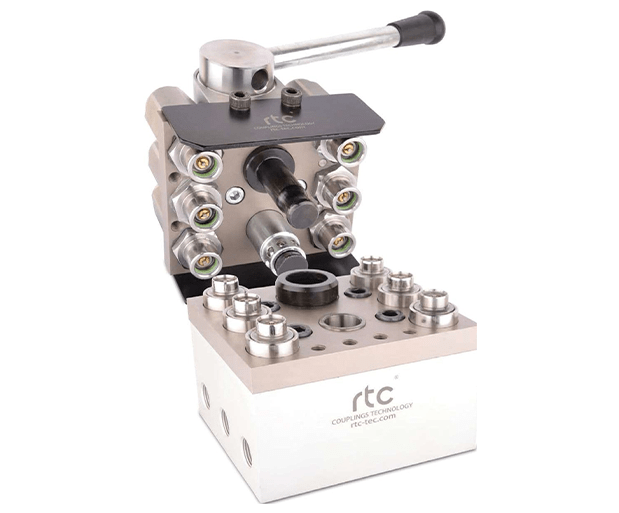

M103

Residual Pressure Connection / Disconnection

Max.Working Pressure
200 bar (2900PSI)

Flow size (mm)
10

Connections
2 / 4 /6 / 8

PDF

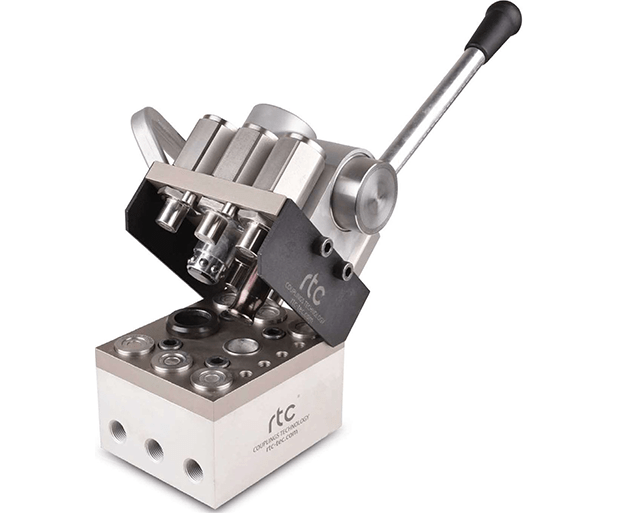

M104

Hydraulic Multicouplingn With optional coding

Max.Working Pressure
200 bar

Flew size (mm)
08 / 10

Connections
2 - 4 - 6 - 8

PDF

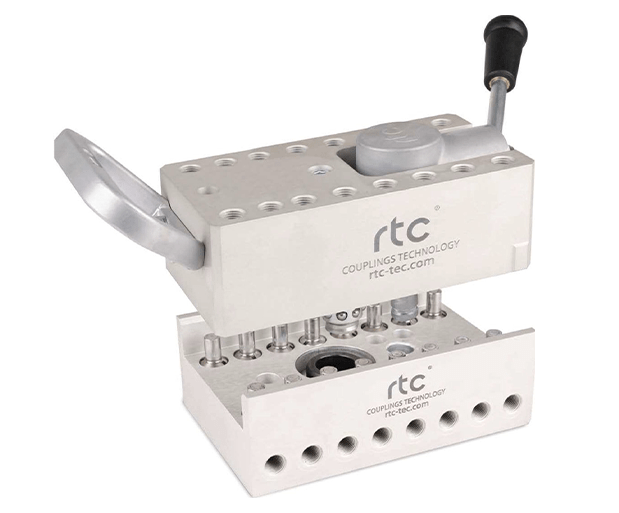

M115

Flat Face - Dripless

Max.Working Pressure
16 bar (230 PSI)

Flow size
10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 1 6 / 18 / 20 / 24

PDF

M150

Flat Faced / Non- Spill

Max.Working Pressure
16 bar  (230 PSI)

Flow size (mm)
09/ 12

Connections
6 / 12 / 18

PDF

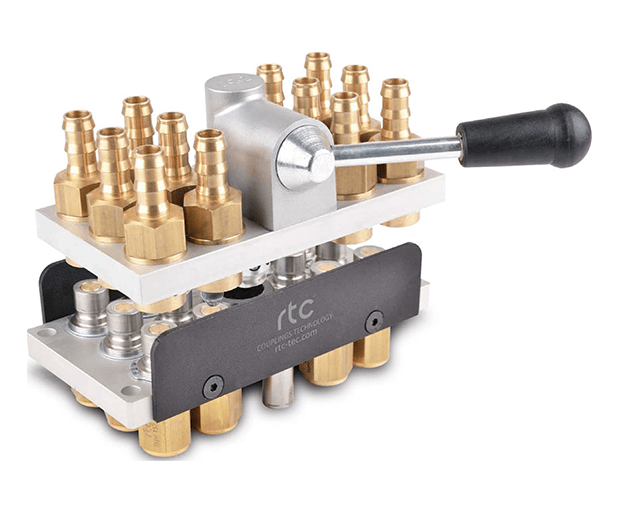

M152

Flat Face - Dripless

Max.Working Pressure
16 bar (230 PSI)

Flow size
10 / 12 / 16

Connections
6 / 8 / 10 / 12 / 1 6 / 18 / 20 / 24

PDF
